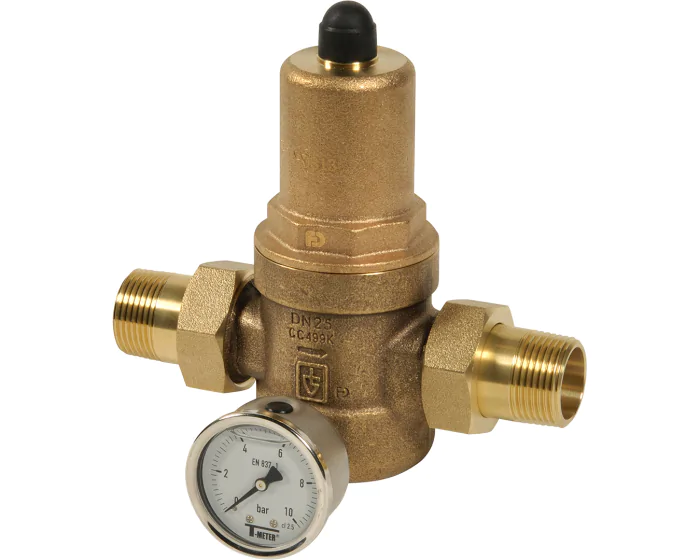

The pressure reducing valve type 681-M made of gunmetal is designed for the pressure reducing function in drinking water and compressed air supply systems.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| ATEX compatible | No |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 345.0 |
| Sealing | EPDM |
| Gasket | EPDM |
| Kv (m³/h) | 3.30 |
| Body material | Bronze CC 499K |
| Downstream pressure range (bar) | 1 / 8 |
| PS (bar) | 25 |
| Connections | BSP MM |
| TS max (°C) | 95 |
| TS min (°C) | -10 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP MM Bronze CC 499K DN15 - 1/2'' | 246812 | S1011744 |
€86.79
(excl. btw)
|
add to cart |
| BSP MM Bronze CC 499K DN20 - 3/4'' | 246813 | S1011745 |
€96.66
(excl. btw)
|
add to cart |
| BSP MM Bronze CC 499K DN25 - 1'' | 246814 | S1011746 |
€115.17
(excl. btw)
|
add to cart |
| BSP MM Bronze CC 499K DN32 - 1''1/4 | 246815 | S1011747 |
€148.63
(excl. btw)
|
add to cart |
| BSP MM Bronze CC 499K DN40 - 1''1/2 | 246816 | S1011748 |
€305.29
(excl. btw)
|
add to cart |
| BSP MM Bronze CC 499K DN50 - 2'' | 246817 | S1011749 |
€372.33
(excl. btw)
|
add to cart |
